Specify floating shelf brackets as part of the complete shelf system, not as a late accessory. The board, bracket, screws, anchors, wall substrate, and installation template all decide whether the finished product looks straight, installs cleanly, and performs as claimed. A strong board with the wrong bracket engagement, hole diameter, screw size, or anchor type can still produce returns.
For buyers sourcing shelves from China, the practical workflow is to define the visual system first—hidden rod, exposed bracket, rail, or guard—then lock the mating dimensions, hardware pack, installation instructions, test evidence, and version control before mass production. This checklist shows what to specify and inspect.
First Choose the Mounting System

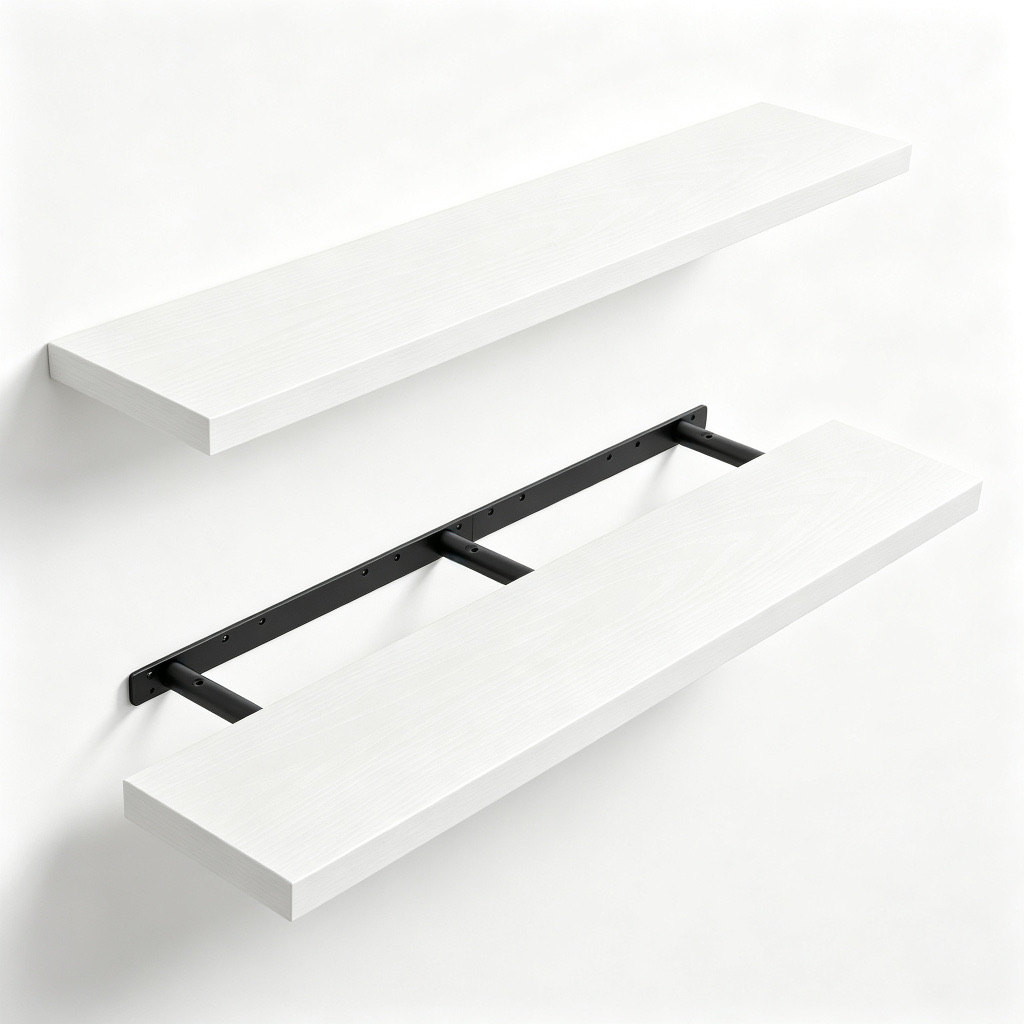

Hidden Brackets for a Clean Floating Look
Hidden steel brackets create the visual “floating” effect because the support is concealed in or behind the board. The tradeoff is tighter manufacturing control: hole diameter, hole depth, bracket spacing, board thickness, and wall-side fixing points must match precisely. Even a small mismatch can cause rotation, gaps, or incomplete engagement.
- Board thickness and bracket engagement depth
- Hole diameter, hole depth, and hole cleanliness
- Bracket spacing relative to the approved drawing
- Wall-side plate, rod diameter, and screw points
- Level adjustment and installation tolerance
- Delivery format: whether the bracket is supplied as a fixed assembly or loose parts
Exposed Brackets for Flexible Display
Exposed metal brackets change the product’s visual language and often simplify installation because the fixing points are visible. They can also allow different board orientations when the bracket is mounted above or below the shelf. For this format, inspect weld cleanup, coating, edge safety, screw-hole alignment, contact flatness, and whether the bracket marks the board during transport.
Rails, Guards, and Towel Bars
Rails and guards are functional hardware, not decoration. They must keep objects from sliding while remaining easy to clean and safe to touch. Specify rail height, gap, wall-side attachment, weld or bend quality, coating, and alignment. Bathroom and kitchen programs should also connect the metal specification to the bathroom shelf moisture and QC guide.
The Hardware Specification Sheet
Use one hardware sheet for quotation, sampling, production, and inspection. It should remove ambiguity from every mating part.
- Bracket format: hidden rod, concealed plate, exposed bracket, rail, guard, towel bar, or custom structure.
- Material and coating: metal type, finish color, sheen, surface protection, and approved limit sample.
- Board mating dimensions: hole diameter, depth, spacing, projection, and allowable tolerance.
- Board compatibility: thickness, material, edge distance, and whether holes are pre-drilled.
- Fixing hardware: screw size, anchor type, quantity, wall compatibility, and any level tool.
- Installation copy: drilling template, language, diagrams, warnings, recommended height, and care instructions.
- Performance expectation: intended load position, wall condition, and agreed test or evidence path.
- Spare count: whether extra screws or anchors are included and how shortages are handled.
- Version control: artwork, bracket, hardware, template, and instruction revisions require written approval.
Who Supplies the Hardware?
In many shelf programs, the shelf factory coordinates the bracket and fastener pack even when it does not manufacture every metal component itself. That is normal. What matters is responsibility: who selects the component, who approves the sample, who controls substitutions, and who is responsible when the components do not mate.
- Factory-supplied hardware: easiest to control as one retail package, but ask for the specification and substitution rule.
- Buyer-supplied hardware: may suit a proprietary mounting system, but the factory must receive installation samples and stock coverage before production.
- Shared development: define which party owns the drawing, tooling, inventory, exclusivity, and revision history.
- Third-party inspection: clarify whether incoming hardware is checked by the factory, inspector, or both.
Never allow a supplier to switch bracket coating, screw size, anchor brand, rod diameter, or template version without written approval. A visually identical substitute can change installation behavior and invalidate a previous test result. For the relationship between hardware and published capacity, use the wall shelf load testing checklist.
Fit Checks During Sampling
1. Dry-Fit Every Mating Part
Before the shelf is installed, fit the bracket, board, screws, anchors, rails, template, and printed instructions together. Check that parts insert fully, holes are clean, screws do not bottom out, rails align, and hardware counts match the manual.
2. Install With the Customer Pack Only
Install one complete sample using only the parts the customer will receive. Confirm that the shelf sits level, bracket spacing matches the template, and the recommended anchors match the wall types named in the instructions. If an installer needs extra tools or hidden assumptions, revise the kit or instructions before printing.
3. Check Visual Alignment
- No visible gap between board and wall where the design requires contact.
- Exposed brackets sit square and at consistent height.
- Rails and guards are level and evenly spaced.
- Coating color is consistent across brackets, rails, screws, and visible plates.
- No burrs, sharp edges, weld beads, paint runs, or chipped coating.
- The installed shelf does not rotate unexpectedly under normal adjustment.
Incoming Hardware and Final Inspection
Ask how hardware is inspected when it arrives and again after packing. A practical factory process separates component inspection from finished-unit inspection.
- Incoming bracket check: quantity, coating, dimensions, thread condition, flatness, burrs, and packaging protection.
- First-article shelf check: hole positions, bracket fit, hardware count, template accuracy, and installation result.
- Final random inspection: packed quantity, assortment, screws, anchors, manuals, template version, labels, and carton marks.
- Function sample: open cartons from different batches and assemble one complete unit.
- Transport check: confirm hardware cannot scratch boards, escape its bag, or distort the printed manual.
Photograph the hardware layout, approved sample, installed sample, and packed carton. These photos become the reference when a later batch looks similar but does not fit the same way. For the broader approval sequence, see wall shelf sampling from China.
Packaging and Instruction Mistakes To Avoid
- Loose hardware in the carton. Screws and brackets can scratch finished surfaces.
- Miscounted anchors. A missing anchor can prevent installation and generate a customer-service claim.
- Unclear wall types. Do not show every wall icon unless the supplied anchors are suitable for those walls.
- Template scaling error. A printed template must remain dimensionally accurate when produced at full scale.
- Mixed instruction versions. Old manuals in a new hardware batch create avoidable confusion.
- Unlabeled spare parts. If extras are included, identify them clearly.
- No installation warning. Weight, wall condition, and adult installation may require explicit language.
For Amazon FBA and marketplace programs, align hardware bags, barcode labels, carton marks, and listing copy with the FBA packaging and labeling checklist.
How Cfurni Handles Shelf Hardware
Cfurni is a Zhejiang wall shelf factory established in 1995, with 50,000 m² of production space, more than 200 craftsmen, and CNC woodworking capability. The current floating shelf line uses hidden steel brackets for a clean floating appearance, while solid wood shelving includes exposed black metal bracket arrangements and functional rails or guards. Products are supplied with mounting hardware and instructions, and OEM/ODM projects can adjust hardware, dimensions, finish, packaging, and installation copy.
Start from the floating shelves and solid wood shelving collections, then send the bracket format, target wall types, installation requirement, load expectation, estimated quantity, and destination market through the contact form. Cfurni normally responds within 8 hours. For size and finish decisions, see custom floating shelves.
FAQ
Do floating shelf brackets come with the shelves?
Cfurni’s catalog products include mounting hardware and instructions. For custom projects, confirm the exact bracket, screw, anchor, template, spare-part, and packaging specification in writing before production.
Hidden brackets or exposed brackets: which are better?
Neither is universally better. Hidden brackets create a cleaner floating look and require tight hole control. Exposed brackets make the support visible and can simplify installation or allow flexible layouts. Choose based on the product design, target customer, wall types, and installation instructions.
Can one anchor work on every wall?
Do not assume that. Drywall, wood, brick, tile, concrete, and plaster can behave differently. Confirm the supplied hardware with each intended wall type and make the instruction copy match only the tested or supported conditions.
What is the most common floating shelf hardware failure?
Mismatch is more common than weakness: hole diameter, engagement depth, bracket spacing, screw length, template scale, or anchor type does not match the final board. Dry-fit and install a complete retail sample before mass production.
Can we use our own bracket design?
Yes, discuss it as an OEM hardware project. Supply the drawing, physical sample, or performance requirement, then approve board mating dimensions, installation instructions, packaging, inspection points, and change control.
Next Step: Submit a Hardware Product File
Prepare a one-page file with bracket drawing, board thickness, mating dimensions, wall types, hardware list, installation template, load expectation, artwork version, and inspection requirements. A clear file prevents the most expensive bracket problem: parts that look correct but do not work together.
